Capacitive Proximity Switches Capacitive Proximity Switches Capacitive Proximity Switches Capacitive Proximity Switches

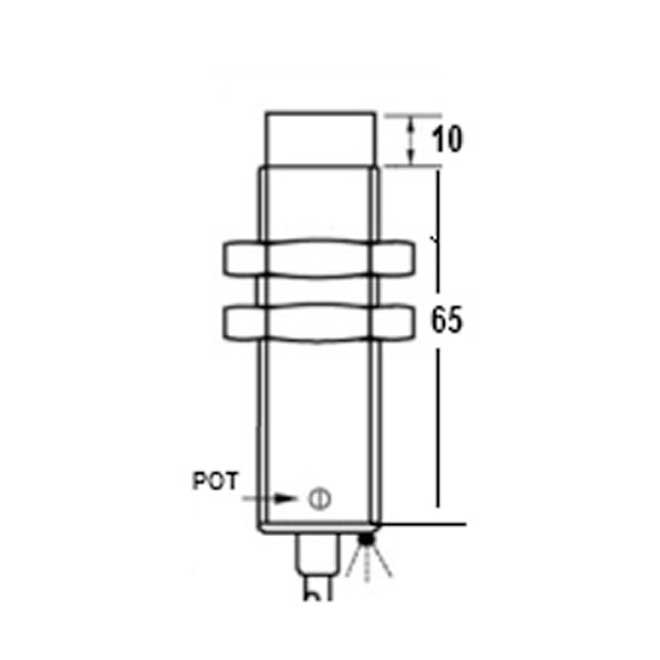

M18 X 75-3Wire-DC

Diameter
M18
Capacitive Proximity Switches non-Flush Switching Distance 8mm
Housing Material Nickel plated brass
Capacitive Proximity Switches With LED Without LED Capacitive Proximity Switches
Max Load Current 250mA
Supply Voltage 10-30 voltDC
Switching Frequency 100Hz
Response Time 1.5ms/1.5ms
Protecting category IP67
Operating Temperature -25ºC- +70ºC
Short Circuit Protection Yes
Connecting Type 2mtrs,3core pvc cable
DC 3 wire 10-30V NPN N.O. STC-M18NO-8
DC 3 wire 10-30V NPN N.C. STC-M18NC-8
DC 3 wire 10-30V PNP N.O. STC-M18PO-8
DC 3 wire 10-30V PNP N.C. STC-M18PC-8
