Products

Solid State Relays and Relay Modules

Input Control

Sepecifications
Min.
Max
Units
Control Voltage Range 3
75		 32
240		 VDC
VAC
Input Current -400C < ta < 800 C   20 mA
Turn off Voltage- 30 C <ta . < 80 C   1
4		 VDC
VAC
Turn off Voltage- 40 C < ta . < 80 C 75 260 VAC
Isolation ( Input to Output, Input to case Output to case)   10 OHMS

Output (Load)

Sepecifications
Min.
Max
Units
Output Current rating with heat sink 0.05 10 25
15, 40, 60		 AMPS
RMS
Load Voltage Rating 25 480 VAC (RMS)
Frequency rang 47 70 Hz
Surge Current rating
( 20ms ) at 40 amp type 425 10 AMP
over voltage rating (Transisent Peak) 1200   V Peak

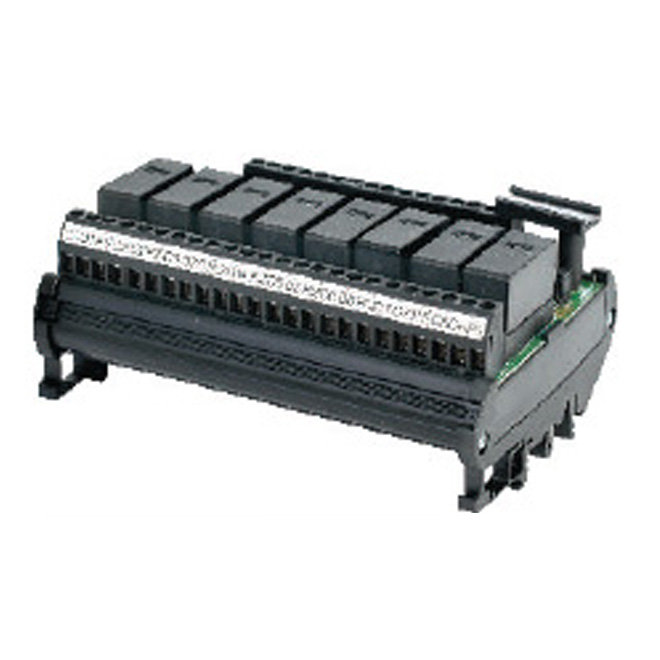

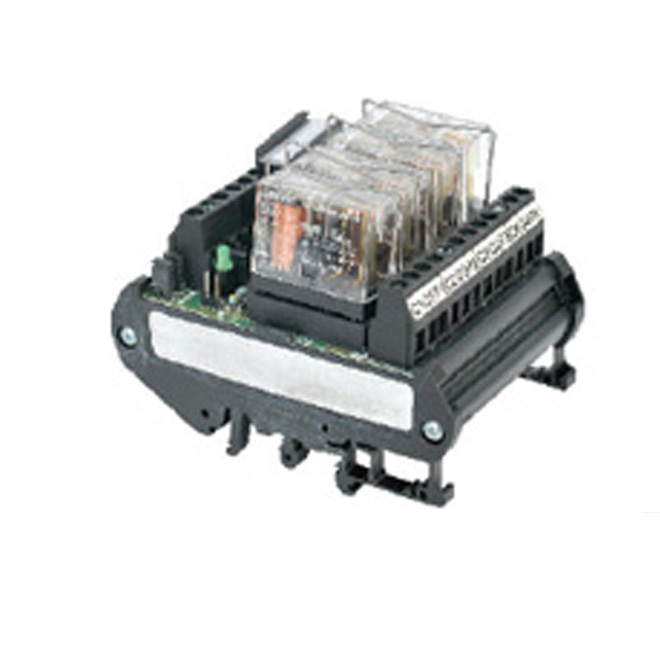

Relay Modules

Relay modules are available like 2/4/8/16 channel with base with fuse protection, Relay O/p = 1C/o / 2C/o contacts.

Solid State Relays Manufacturer in Pune, India

Sai Tech Controls is a Pune‑based manufacturer and exporter of high‑performance Solid State Relays (SSR) and relay modules, available in single‑phase and three‑phase types from 2 A up to 150 A, with control inputs from 0‑10 VDC or 4‑20 mA and output voltages up to 600 VAC.Located in Chinchwad (Pimpri, Pune), we deliver durable, zero‑noise, fast‑switching SSRs tailored for industrial automation across India

Solid State Relays Supplier in Pune, India

Saitech Control, based in Pimpri-Chinchwad (Pune), is a leading manufacturer and supplier of Solid State Relays (SSRs) available in single-phase and three-phase versions, supporting current ratings from 2 A up to 150 A and load voltages up to 600 VAC.Our SSRs support analog inputs (0–10 V DC or 4–20 mA), feature options with heat sinks, and come with DC output versions rated up to 1000 A—ideal for industrial heater and process‑control applications.

Solid State Relay Dealer in Pune, India

Saitech Control offers high-quality solid state relays for industrial automation and control systems at competitive prices.
