Products

Inductive Proximity Switches

Sai Tech Control offers you a wide range of high quality Inductive Proximity Switches. these are used in all areas of control & automation such as Machine Tools, Packaging, Injection Moulding, Automobile Industries, Process Industries, Textile Industries and other Automated Systems.

Operating Principle : The LC oscillator circuit generates the electromagnetic field over the active face, energy is drawn from oscillator. resulting damping of the oscillator. This Change is detected by the electronic circuit to give output signal.

Enclosure : Proximity Switches are available in Tubular shape made of BRASS , S.S., M.S. Other odd Shape Switches or as per customer requirement can be made available on request.

Operating Temperature : Operating Temperature of Proximity Switches is O c to 55 c. 0 Temperature up to 100 c can be manufactured on request.

Protection : AC Switches are protected against transients and surges. DC Switches are protected against Short Circuit and Reverse Polarity.

Advantages

Mounting : In case of Flush Mounting the sensing distance is limited to 0.8 times of the sensing distance for Non Flush Type.

Inductive Proximity Switches

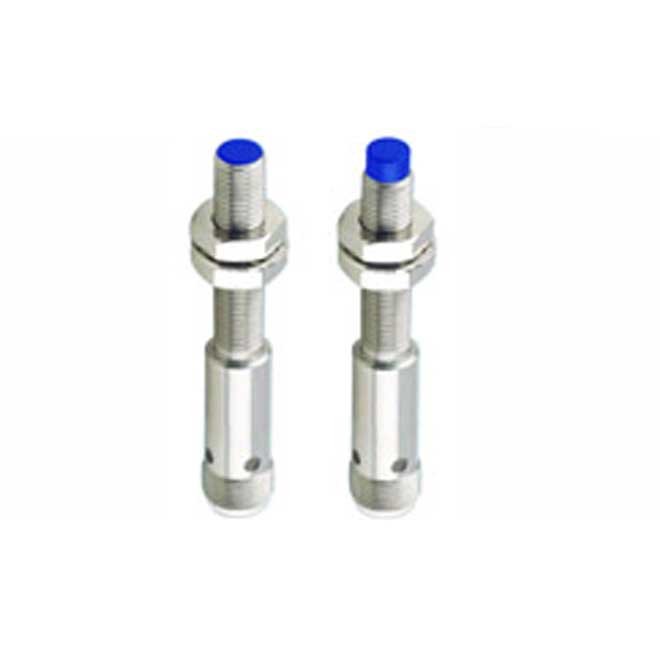

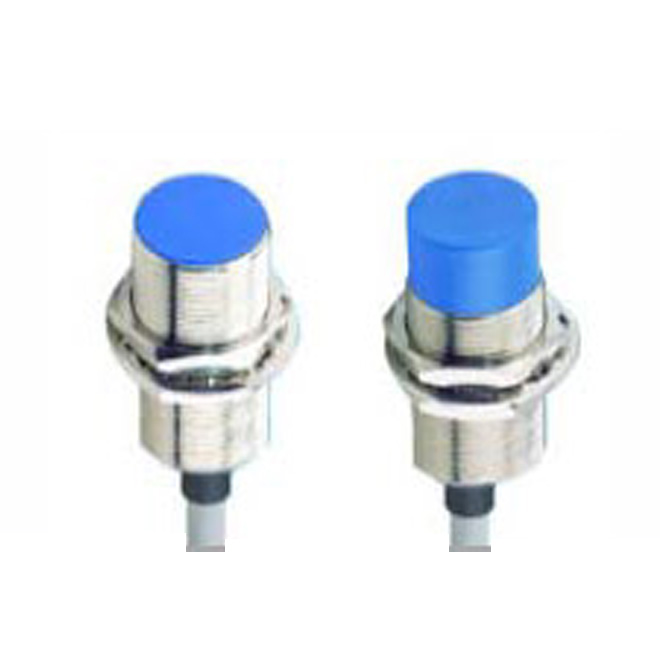

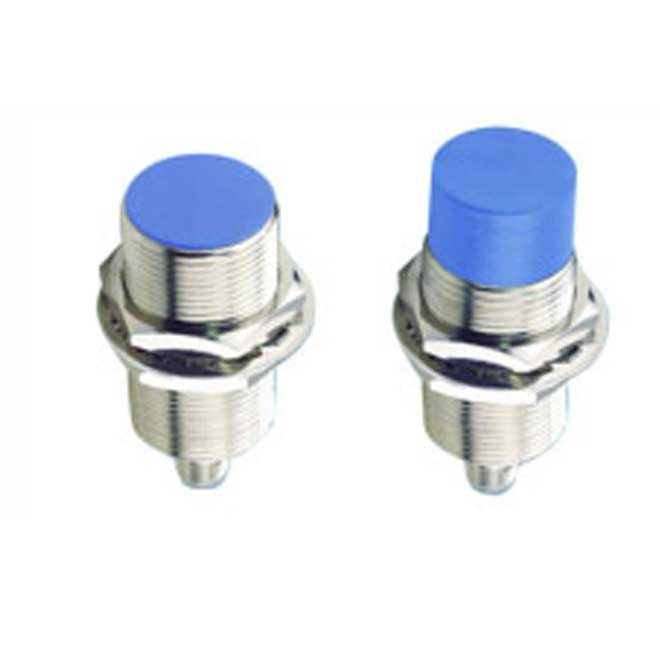

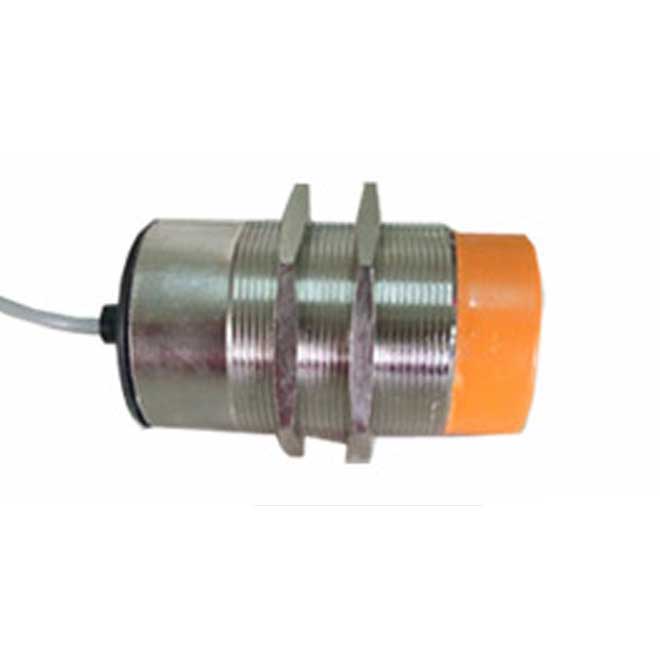

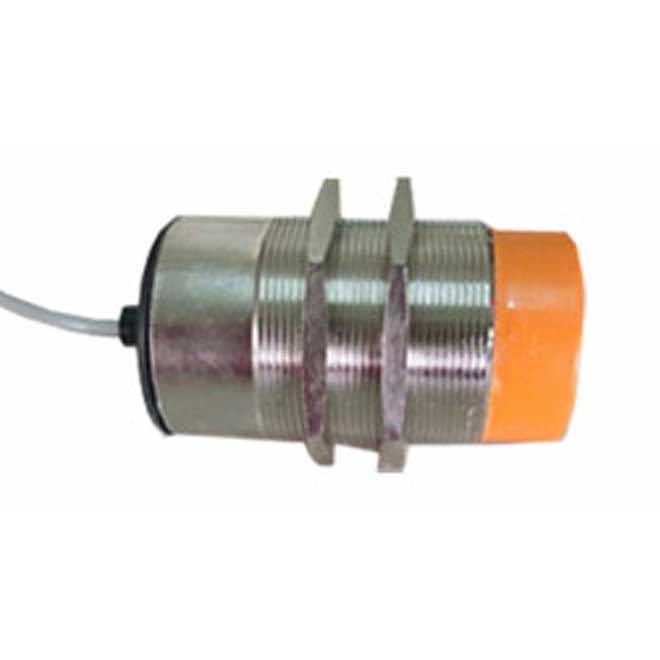

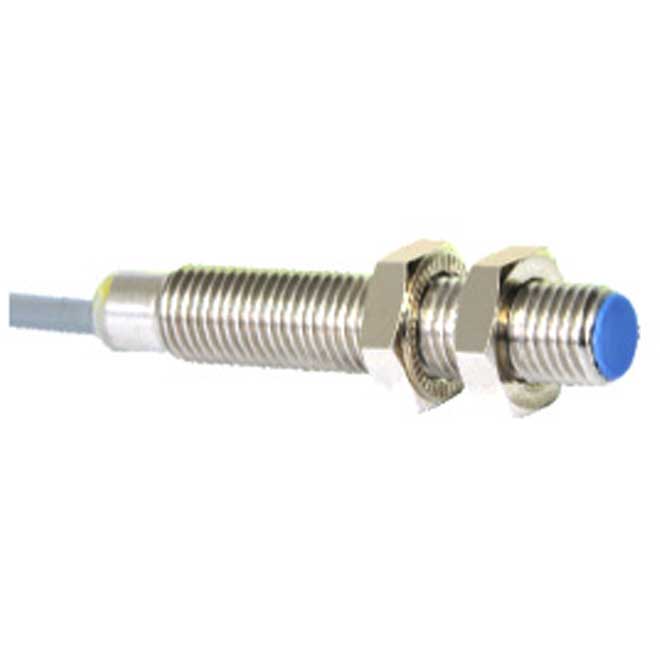

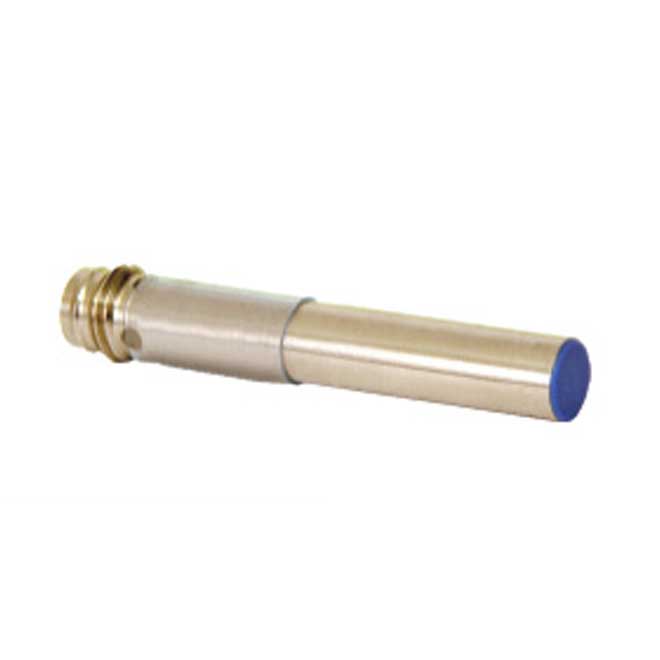

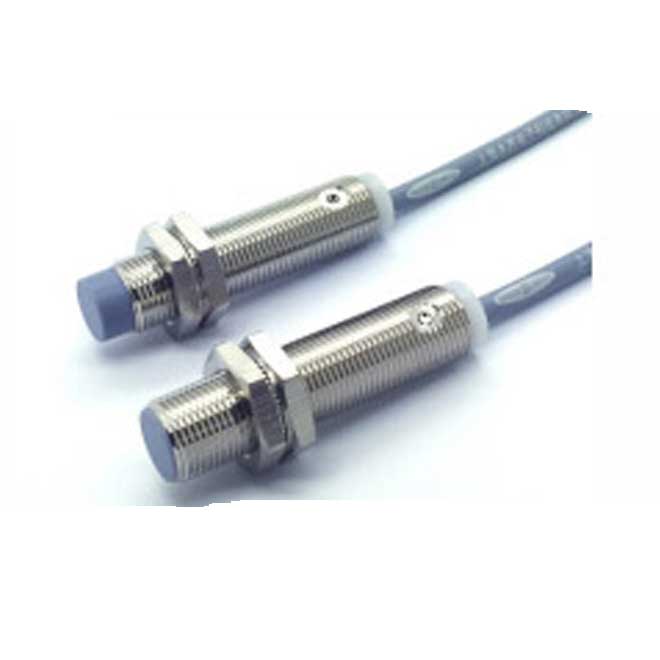

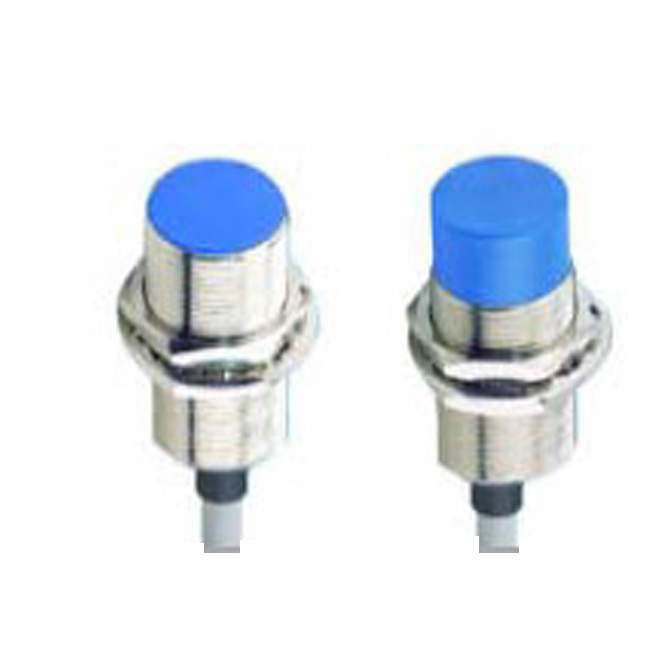

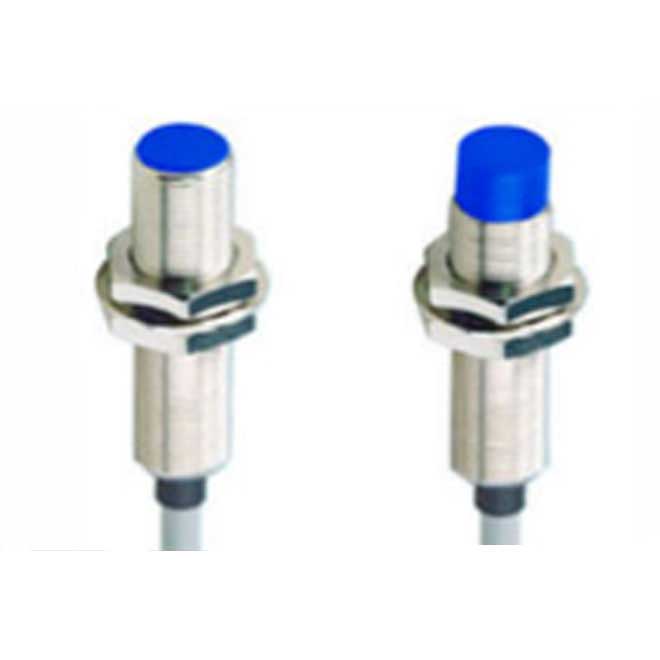

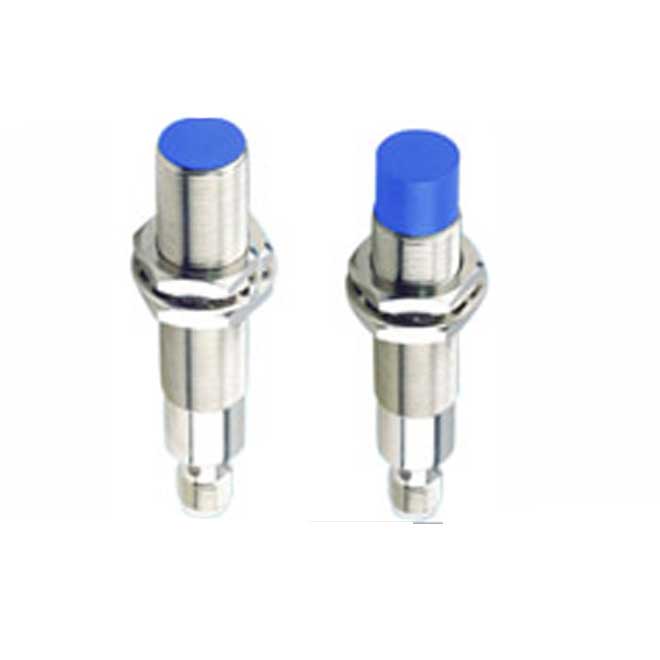

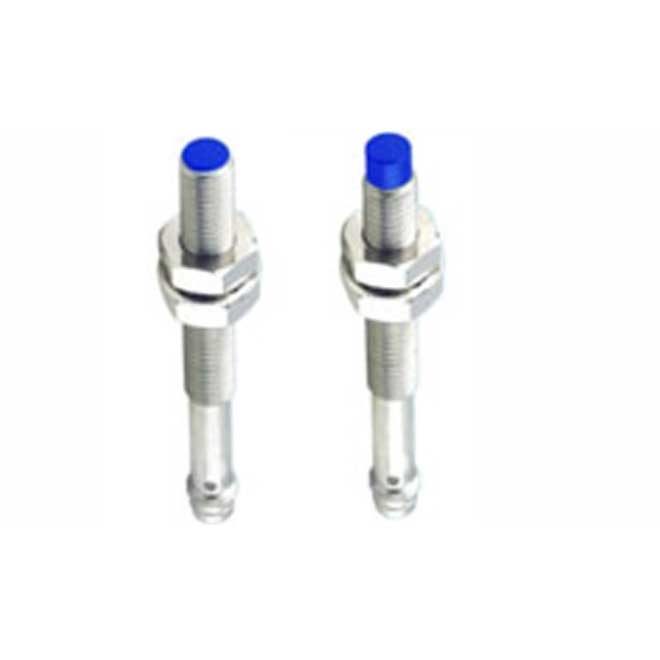

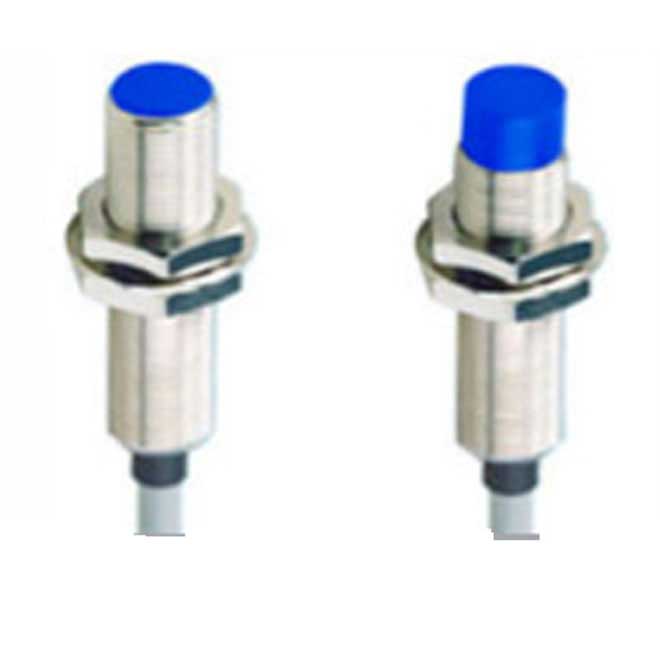

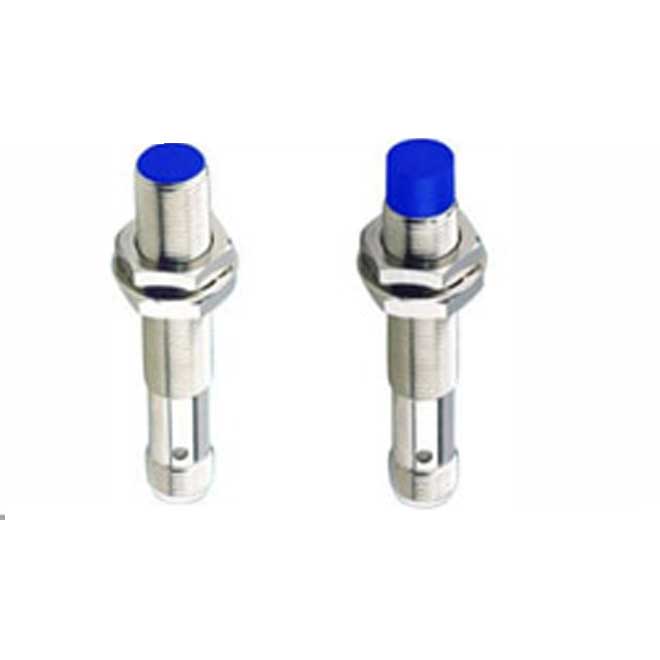

Tubular Switches : Enclosure Type

Inductive Proximity Switches

Size
12
18
24
30
36
50
DC
50
70
65
70
70
65
AC
80
70
70
70
70
65

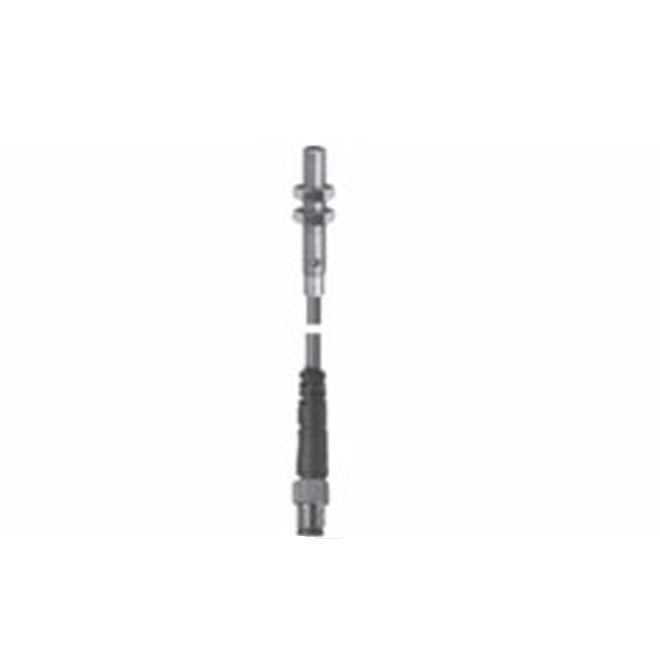

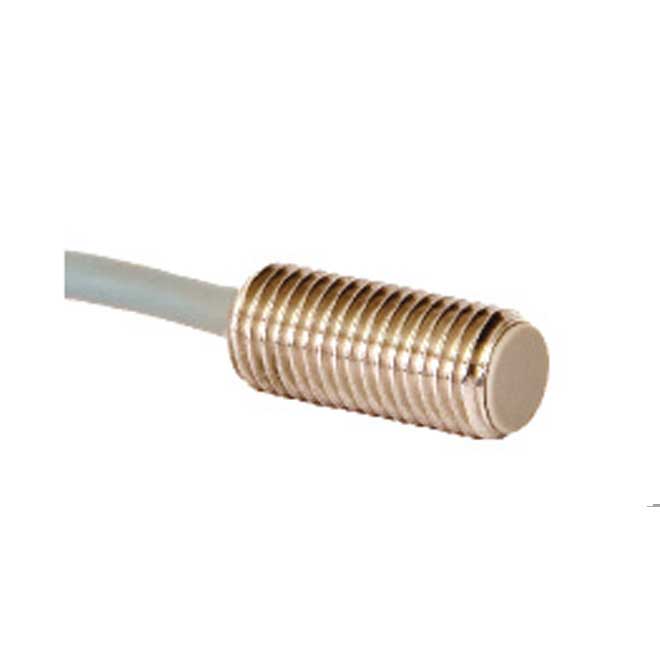

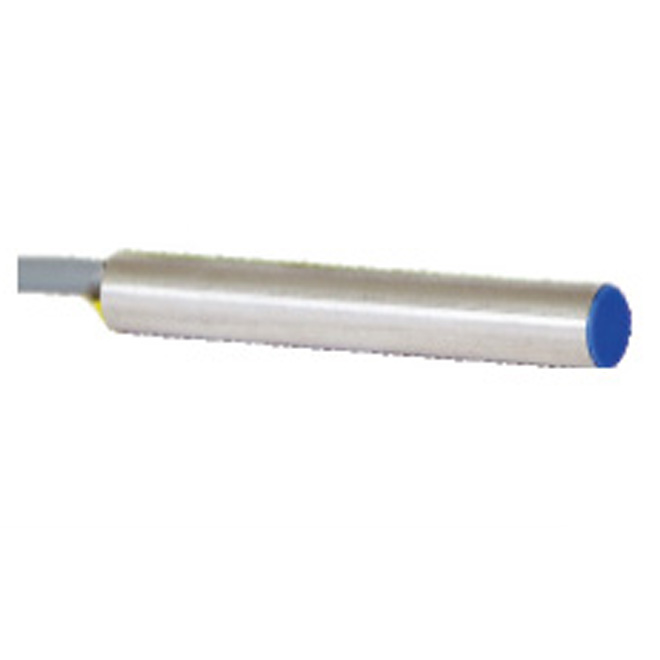

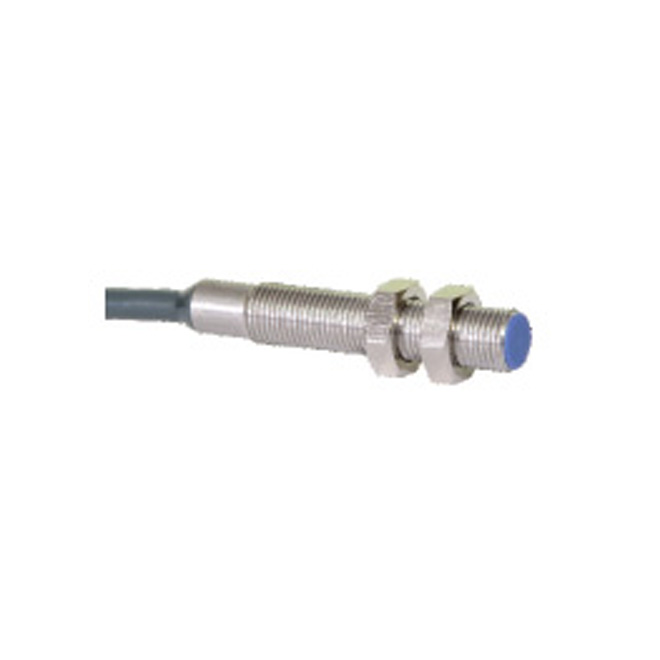

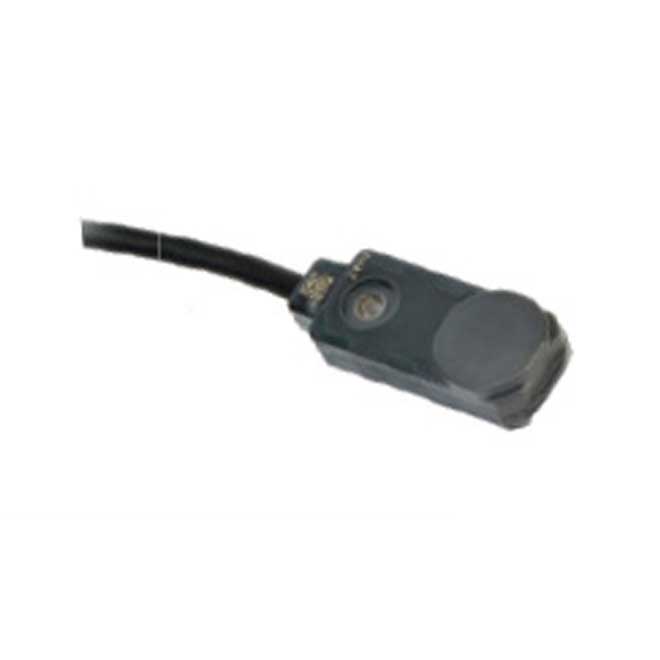

Miniature Sensors : Our miniature sensors with short circuit protection M 8 x 30 mm & M 12 x 30 mm with LED Indication

Types of Inductive Proximity Switches

AC Proximity Switches - Type PS 12 : These are available in 2 wire and 3 wire as shown. These switches are to be connected in series with the load.
Operating Voltage : 110VAC/240VAC/90-240VAC
Logic : NO/ NC/CO
Load : up to 500 MA

Inductive Proximity Switches

DC Proximity Switches - Type PS 13 : These are available in 3 wires as shown. Special models of 2 wires and 4 wires are available on request
Operating Voltage : 5V to 30V DC (up to 220V DC on request)
Logic : NPN / PNP
Load : up to 400 MA

Inductive Proximity Switches

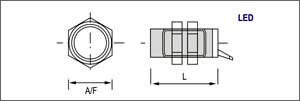

Dimensional & Technical Specification

Size mm
Sensing distance
in mm Flush Non Flush
Load Current in ma
For AC
For DC
Ø 6.5
1
-
-
250
M8
1.5
2
-
250
M12
2.5
4
-
250
M18
5
7
250
250
M30
10
12
400
250
M36
15
18
400
250
M50
15
20
400
250
M80
30
35
-
400

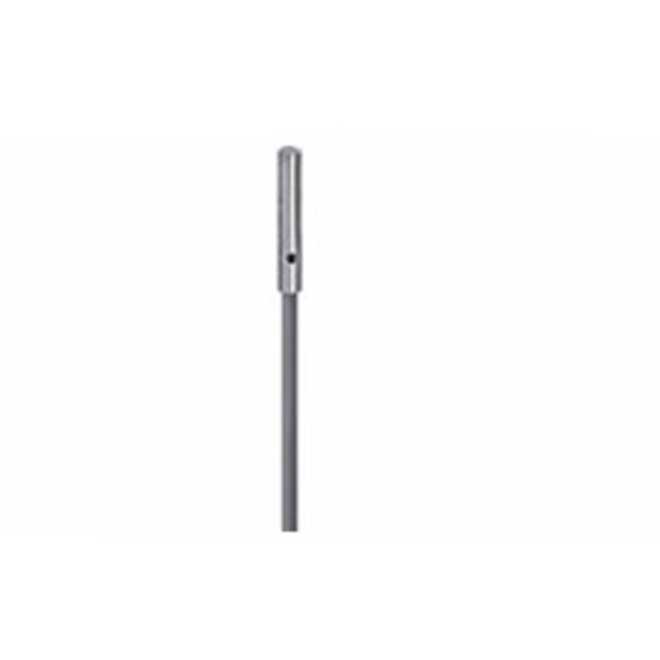

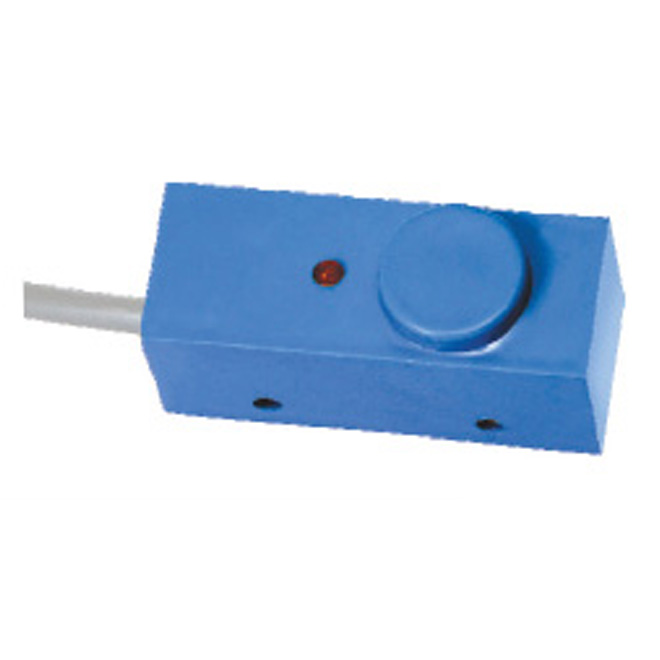

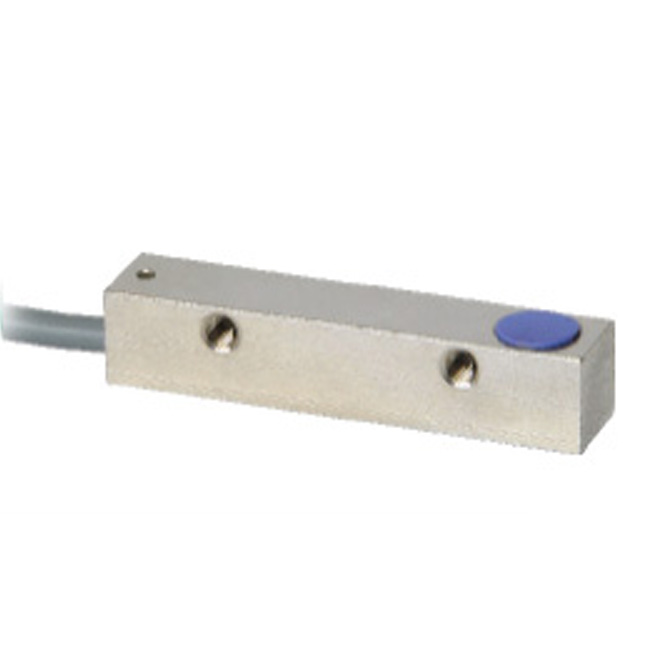

17 x 17 x 36
7
-
250
20 x 20 x 38
7
-
250
26 x 12 x 40
3.5
-
250

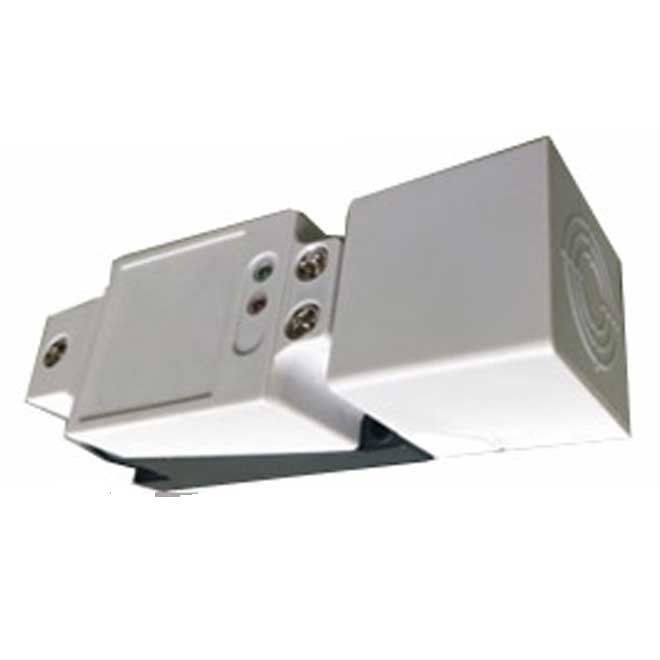

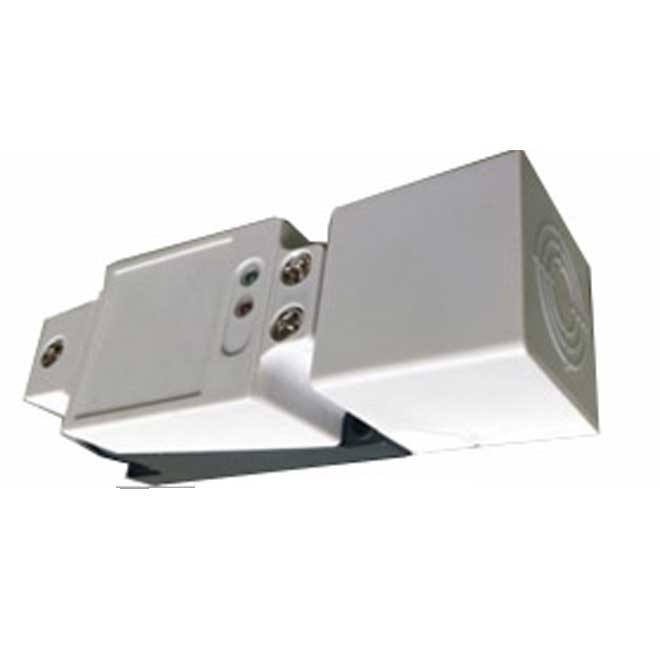

40 x 40 x 112.5
15
20
400
400

Inductive Proximity Switches in Pune, India

Sai Tech Controls, based in Pimpri‑Chinchwad (Pune), manufactures and supplies high‑precision inductive proximity switches (AC/DC, M5 to M50 sizes), widely used in machine tools, packaging, automotive and process automation industries." "Our IP67‑rated inductive sensors offer non‑contact metal detection, high vibration resistance, repeat accuracy up to ±0.02 mm and rugged tubular brass or stainless‑steel housing.

Inductive Proximity Switches Distributor in Pune, India

Sai Tech Controls, located in Pimpri‑Chinchwad, Pune (Gala F‑27, 28, 39 & 40, Sanghavi Steel Compound, Mohan Nagar – 411019), is a trusted manufacturer & authorised distributor of high‑quality Inductive Proximity Switches in India Offering various tubular and block‑type DC/AC inductive sensors (M5, M8, M12, M18, M30 etc.) with IP 67 protection, high vibration resistance, and repeat accuracy ±0.02 mm for automation applications.

Inductive Proximity Switches Supplier in Pune, India

Manufacturer & exporter of a wide range of inductive proximity switches (M5, M8, M12, M18, M30 sizes; AC/DC; 2‑wire, 3‑wire, 4‑pin connectors). Based at Chinchwad, Pune 411019, they serve industrial automation and process control clients across India.

Inductive Proximity Switch Distributor in Pune, India

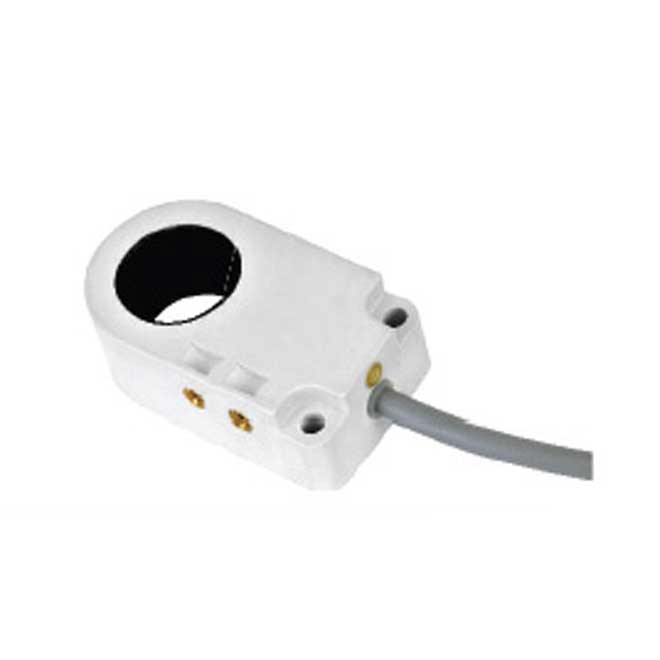

Sai Tech Controls is a manufacturer, supplier, and exporter of inductive proximity switches located in Chinchwad, Pune. Their facility at Gala No. F‑27 to 40, Sanghavi Steel Compound, Mohan Nagar, Chinchwad, Pune – 411019, Maharashtra handles a wide variety of DC and AC inductive proximity sensors like M5, M8, M12, M18, M30 and ring sensors.
