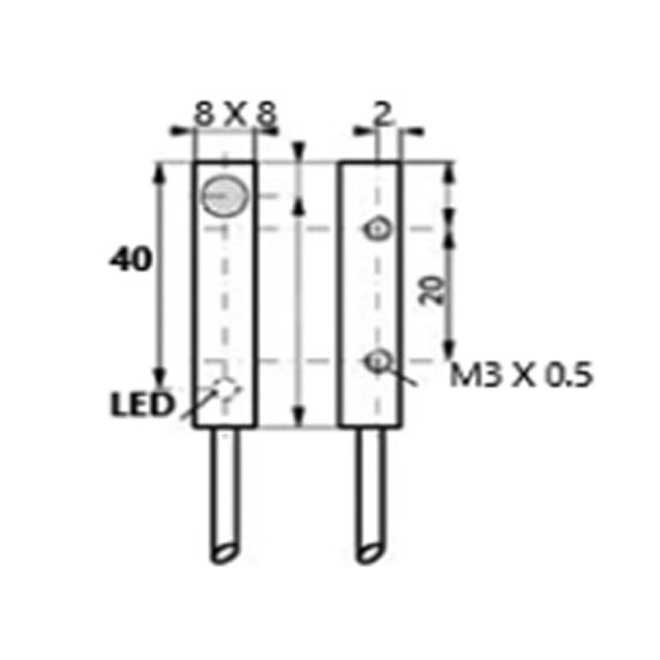

8 X 8 X 40-3Wire-DC
| Switching Distance, Sn: mm | 2 mm |
| Housing Material | Nickel plated brass |
 With LED  Without LED |
|
| Max Load Current | 250Ma |
| Supply Voltage | 10-30 Volt DC |
| Switching Frequency | 2KHz |
| Response Time | 0.1ms/0.1ms |
| Protecting category | IP67 |
| Operating Temperature | -25ºC- +70ºC |
| Short Circuit Protection | Yes |
| Connecting Type | 2mtrs,3core pvc cable |
| DC 3 wire 10-30V NPN N.O. | STI- Q8X8NO -1.5 |
| DC 3 wire 10-30V NPN N.C. | STI- Q8X8NC -1.5 |
| DC 3 wire 10-30V PNP N.O. | STI- Q8X8PO -1.5 |
| DC 3 wire 10-30V PNP N.C. | STI- Q8X8PC -1.5 |
