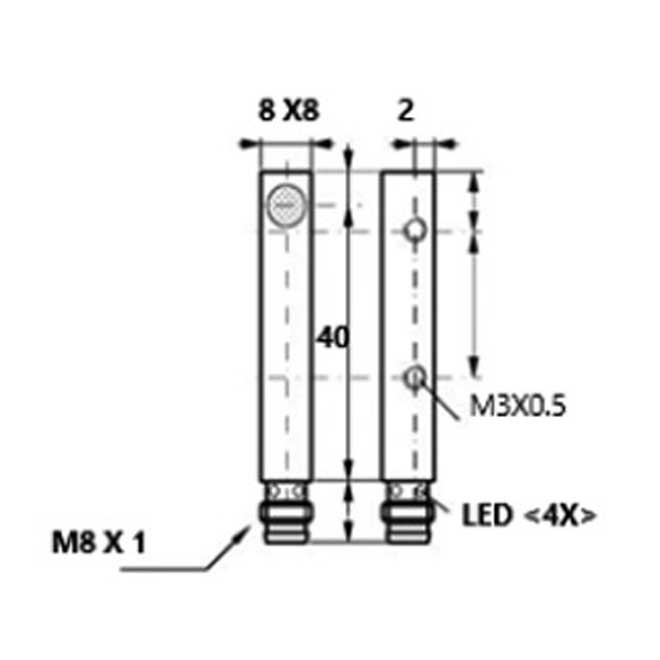

8 X 8 X 40-3 Pin Connector

Switching Distance, Sn: mm 2 mm
Housing Material Nickel plated brass
Inductive Proximity Switches With LED Inductive Proximity Switches Without LED Inductive Proximity Switches
Max Load Current 250Ma
Supply Voltage 10-30 Volt DC
Switching Frequency 2KHz
Response Time 0.1ms/0.1ms
Protecting category IP67
Operating Temperature -25ºC- +70ºC
Short Circuit Protection Yes
Connecting Type M8 Connector
DC 3 wire 10-30V  NPN N.O. . STI- Q8X8NO -1.5-C3
DC 3 wire 10-30V  NPN N.C. STI- Q8X8NC -1.5-C3
DC 3 wire 10-30V  PNP N.O. STI- Q8X8PO -1.5-C3
DC 3 wire 10-30V  PNP N.C. STI- Q8X8PC -1.5-C3
