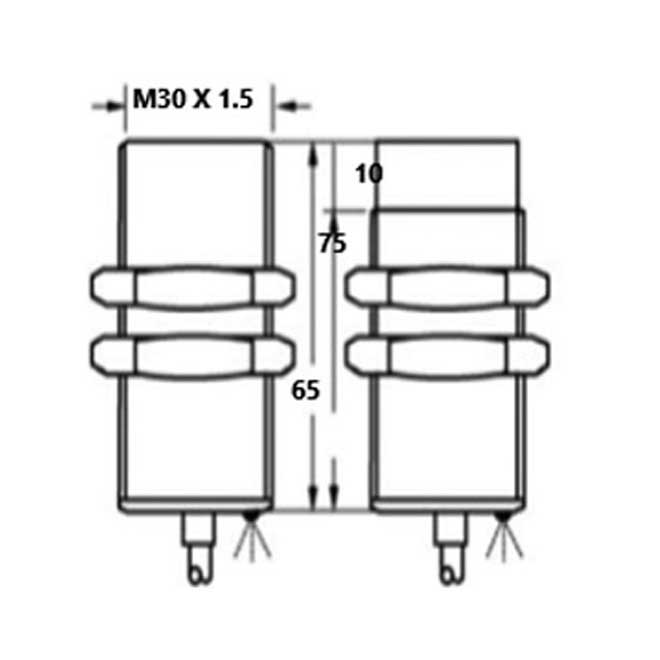

M30 X 65-3Wire-DC
Diameter |
M30 |
||
 Flush Switching Distance |
10mm | 15mm | 22mm |
| non-Flush Switching Distance |
12mm | 16mm | 40mm |
| Housing Material | Nickel plated brass | ||
With LED  Without LED |
|
||
| Max Load Current | 250mA | ||
| Supply Voltage | 10-30 Volt DC | ||
| Switching Frequency | 150KHz | ||
| Response Time | 1ms/1ms | ||
| Protecting category | IP67 | ||
| Operating Temperature | -25ºC- +70ºC | ||
| Short Circuit Protection | Yes | ||
| Connecting Type | 2mtrs,3core pvc cable | ||
| DC 3 wire 10-30V NPN N.O. | STI- M30NO-10/12 | ||
| DC 3 wire 10-30V NPN N.C. | STI- M30NC-10/12 | ||
| DC 3 wire 10-30V PNP N.O. | STI- M30PO-10/12 | ||
| DC 3 wire 10-30V PNP N.C. | STI- M30PC-10/12 | ||
