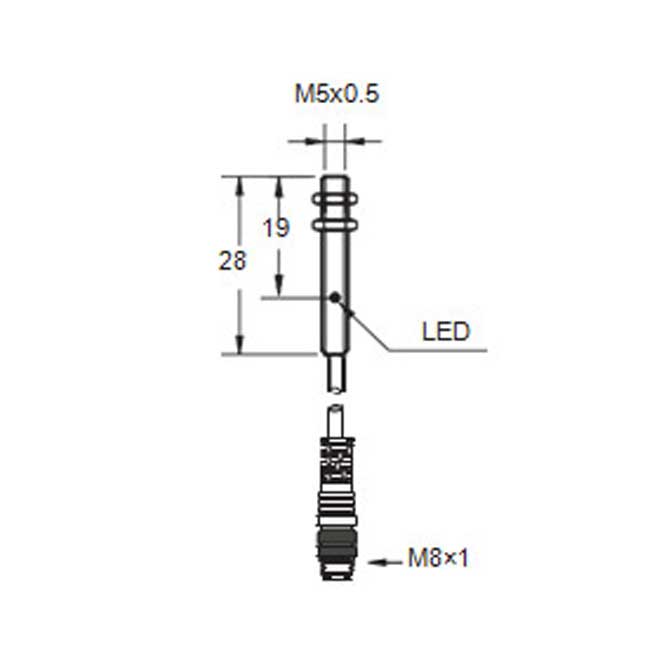

M5-3Wire-DC

Diameter
M5
Inductive Proximity Switches Flush Inductive Proximity Switches non-Flush Inductive Proximity Switches
Switching Distance, Sn: mm 1.5 mm
Housing Material Stainless steel
Inductive Proximity Switches With LED Inductive Proximity Switches Without LED Inductive Proximity Switches
Max Load Current 250mA
Supply Voltage 10-30 volt DC
Switching Frequency 2KHz
Response Time 0.1ms/0.1ms
Protecting category IP67
Operating Temperature -25ºC- +70ºC
Short Circuit Protection Yes
Connecting Type 6 –pigtail
DC 3 wire 10-30V NPN N.O. ISS-M51.5N-A1GN
DC 3 wire 10-30V NPN N.C. ISS-M51.5N-B1GN
DC 3 wire 10-30V PNP N.O. ISS-M51.5P-A1GN
DC 3 wire 10-30V PNP N.C. ISS-M51.5P-B1GN
