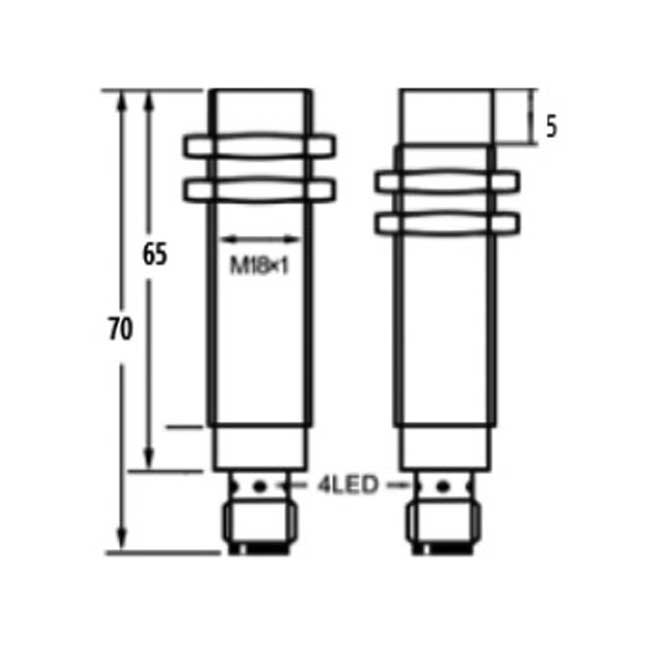

M18-4Pin-DC

Diameter
M12
Flush Switching Distance 5mm 8mm 12mm
Inductive Proximity Switches non-Flush Switching Distance 8mm 16mm 20mm
Housing Material Nickel plated brass
Inductive Proximity Switches With LED Inductive Proximity Switches Without LED Inductive Proximity Switches
Max Load Current 250Ma
Supply Voltage 10-30 Volt DC
Switching Frequency 300Hz
Response Time 0.5ms/0.5ms
Protecting category IP67
Operating Temperature -25ºC- +70ºC
Short Circuit Protection Yes
Connecting Type M12 Connector
DC 3 wire 10-30V NPN N.O. STI- M18NO- 5/7-C
DC 3 wire 10-30V NPN N.C. STI- M18NC- 5/7-C
DC 3 wire 10-30V PNP N.O. STI- M18PO- 5/7-C
DC 3 wire 10-30V PNP N.C. STI- M18PC- 5/7-C
