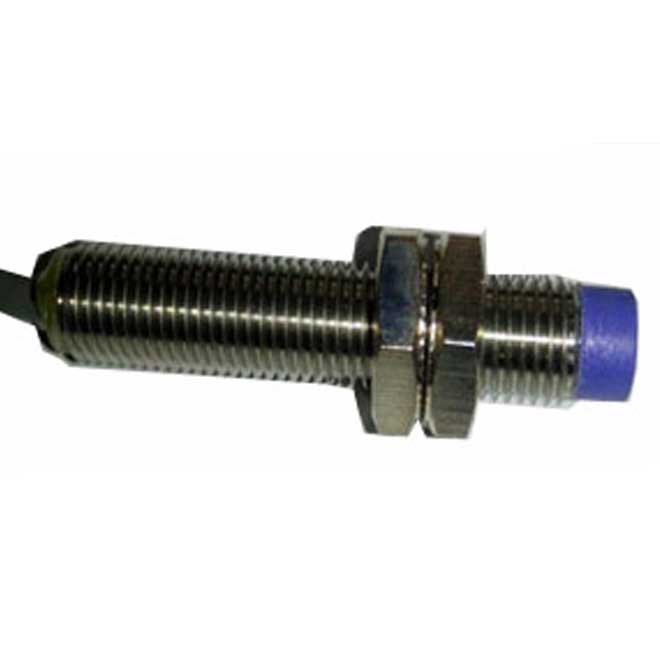

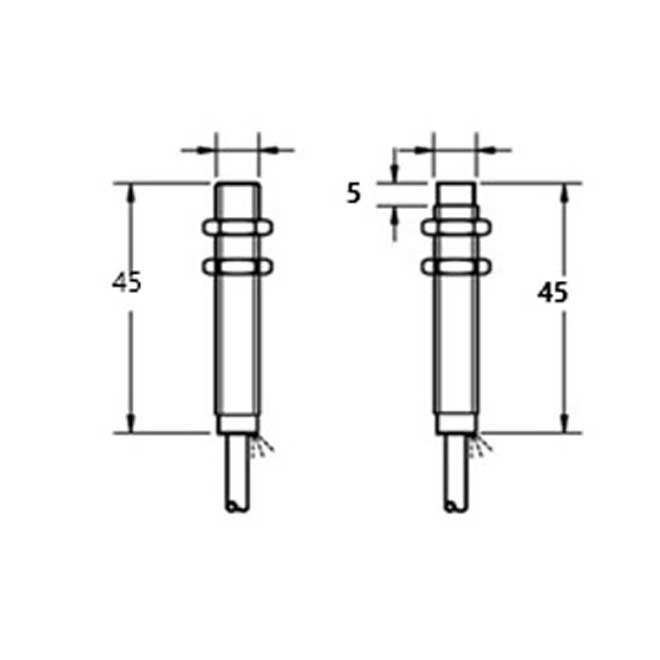

M8 X 45-3Wire-DC
Diameter |
M8 |
||
 Flush Switching Distance |
1mm | 2mm | 3mm |
 non-Flush Switching Distance |
2mm | 4mm | 6mm |
| Housing Material | Stainless steel/Brass | ||
| With LED Without LED |
|
||
| Max Load Current | 250mA | ||
| Supply Voltage | 10-30 Volt DC | ||
| Switching Frequency | 1KHz | ||
| Response Time | 0.1ms/0.1ms | ||
| Protecting category | IP67 | ||
| Operating Temperature | -25ºC- +70ºC | ||
| Short Circuit Protection | Yes | ||
| Connecting Type | 2mtrs,3core pvc cable | ||
| DC 3 wire 10-30V NPN N.O. | STI- M8NO- 1.5/2 | ||
| DC 3 wire 10-30V NPN N.C. | STI- M8NC- 1.5/2 | ||
| DC 3 wire 10-30V PNP N.O. | STI- M8PO- 1.5/2 | ||
| DC 3 wire 10-30V PNP N.C. | STI- M8PC- 1.5/2 | ||
