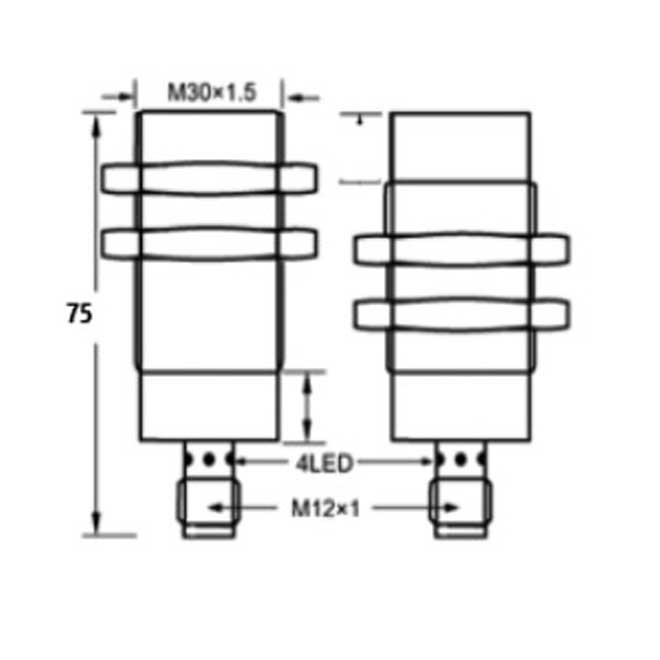

M30X65-4Pin-DC
Diameter |
M30 |
||
 Flush Switching Distance |
10mm | 15mm | 22mm |
 non-Flush Switching Distance |
12mm | 16mm | 40mm |
| Housing Material | Nickel plated brass | ||
| With LED Without LED |
|
||
| Max Load Current | 250mA | ||
| Supply Voltage | 10-30 volt DC | ||
| Switching Frequency | 300Hz | ||
| Response Time | 0.5ms/0.5ms | ||
| Protecting category | IP67 | ||
| Operating Temperature | -25ºC- +70ºC | ||
| Short Circuit Protection | Yes | ||
| Connecting Type | M12 Connector | ||
| DC 3 wire 10-30V NPN N.O. | STI-M30NO-10/12-C | ||
| DC 3 wire 10-30V NPN N.C. | STI-M30NC-10/12-C | ||
| DC 3 wire 10-30V PNP N.O. | STI-M30PO-10/12-C | ||
| DC 3 wire 10-30V PNP N.C. | STI-M30PC-10/12-C | ||
