SDVC20-S

•

Features

• Automatic Voltage Regulation : Eliminate feed speed variation caused by mains voltage fluctuation.
• Soft Startup : In order to avoid sudden shock to the feed material and vibratory feeder, the controller can gently increase output voltage from 0 to the preset value when startup.
• Preset Speeds : 4 preset feed speeds can be stored and output by external short-circuit signal.
• Remote ON/OFF Control : The controller has 2 groups of ON/OF control pins. Switch sensor ot PLC can be Connected to them to turn on/off the controller.
• Photoelectric ON/OFF Control : The CUH Intelligent Photoelectric Sensor can be conrected to turn on/off the controller.
• Remote Speed Control : Output Voltage of the controller can be adjusted remotely by an external potentiometer, a PLC, or a 1·5V DC signal.
• DC Control Output : The controller can output low voltage Dc power associated with logical relation setting of tne ON/OFF Control to drive a solenoid, an electrical relay or other exiernal devices.
• Overheat Protection : If Internal temperature of the controller gets too high. the controller will stop its output to protect itself.
• Overcurrent Protection : If output current exceeds its rated value by misoperation, the controller will stop its output to protect the controller and vibratory feeder.
• Short-Circuit Protection : If output of the controller is short-circuited, the fuse inside the controller will be blown to protect the controller and vibratory feeder from further damage.

Dimensions : 111*76*48.5(L*W*H, mm)
Weight : 285g (without accessory)

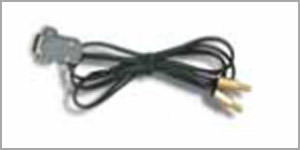

Optional Accessorie :
Intelligent Photoelectric Sensor (1.2m)

Technical Specifications
